HB Hardness (Brinell Hardness) – Guide for CNC Machining and OEM Parts

Choosing the right material hardness for a machined or formed part can determine whether it lasts years in service or fails on first use. This guide covers HB hardness from definition through practical application, giving design engineers and OEM buyers the knowledge they need to specify, verify, and manufacture hardness-critical components.

What is HB hardness (Brinell hardness)?

HB hardness, also known as brinell hardness, quantifies a material’s resistance to permanent indentation. The brinell hardness test presses a hard spherical indenter-commonly 10 mm in diameter-into the surface under heavy load (up to 3000 kgf) and the resulting impression is measured to produce a brinell hardness number (BHN or HBW).

Brinell hardness values typically range from 100 HB to 650 HB across engineering metals. To put that in context, mild steel in an annealed condition sits around 120–180 HBW, while hardened steel used for wear components can reach 400–600 HBW. The brinell method is suitable for materials with coarse structures or rough surfaces, making it ideal for castings, forgings, and heavy section parts.

Brinell hardness is significant for evaluating strength, wear resistance, and machinability of metals-three properties that directly influence tool selection, cutting parameters, and the success of any CNC machining or forming operation.

What is hardness in materials engineering?

Hardness in materials engineering is the resistance of a material to localized plastic deformation, whether by indentation, scratching, or abrasion. It is closely linked to strength: higher hardness generally indicates greater wear resistance and higher load-bearing capacity. However, materials with high hardness are often more brittle and less tolerant of impact or cyclic loading.

Hardness testing provides a fast, non-destructive way to estimate mechanical strength, especially for steels and cast irons. The main hardness scales used in industry are brinell (HB), rockwell (HRC, HRB), and vickers (HV). This article focuses on the HB hardness scale, though conversions to other methods are covered below.

In CNC machining, die casting, and sheet metal fabrication, hardness governs tool wear rates, forming limits, surface finish quality, and whether a part can meet its design life.

How the Brinell hardness test (HB/HBW) works

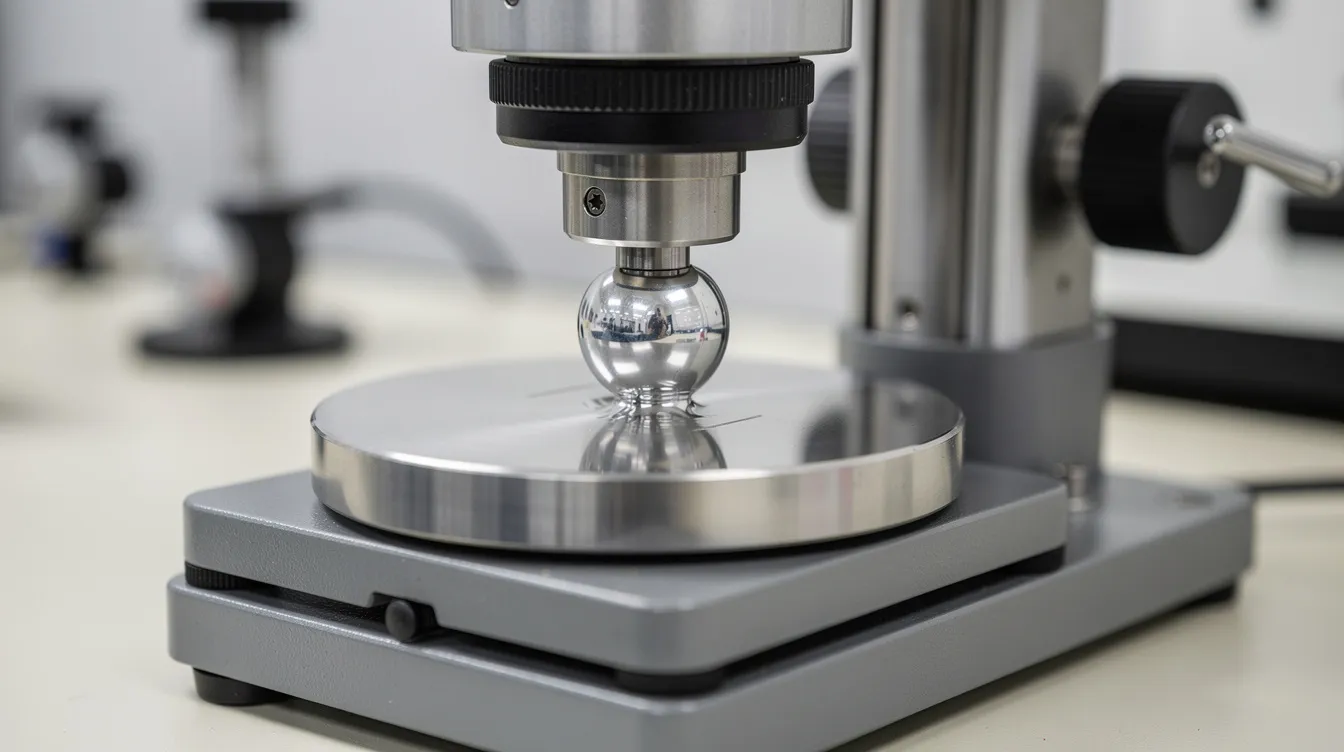

The brinell hardness test was developed in the late 1800s by Johan August Brinell and remains one of the most commonly used methods for bulk hardness measurement. The brinell test proceeds as follows: a tungsten carbide ball (typically 10 mm diameter) is pressed into the specimen under a known force-often 3000 kgf for steels. The load is held for a dwell time of 10–15 seconds, then removed.

After unloading, the diameter of the circular indentation left on the surface is measured with an optical system, typically across two perpendicular directions. The brinell hardness number is then calculated by dividing the applied load by the curved surface area of the indentation. Brinell hardness tests use a 10 mm steel ball (now tungsten carbide) under 3000 kgf as the standard conditions for steels, though the test load ranges from 1 kgf to 3000 kgf depending on material and specimen size.

As an approximate example: a 10 mm ball at 3000 kgf on medium-carbon steel might produce an indent diameter of about 5.0 mm, yielding an HBW around 140–150.

Standards, notation, and designation of HB hardness

Modern brinell testing is standardized by ASTM E10 and ISO 6506-1. These standards define permissible ball sizes, loads, dwell times, specimen thickness requirements, and reporting formats. Brinell hardness is designated as HBW in standards, where “W” indicates a tungsten carbide ball. Brinell hardness values are expressed as HBW followed by test conditions.

A full designation looks like this: 210 HBW 10/3000/15, meaning a hardness number of 210, measured with a 10 mm tungsten carbide ball, 3000 kgf load, and 15-second dwell. In informal usage the dwell time is sometimes omitted, but ball diameter and load should always be shown to avoid ambiguity.

Historical notations HB or HBS (steel ball) still appear on older certificates. Tungsten carbide balls replaced steel balls because carbide offers far better wear resistance and measurement stability at high loads. When specifying HB hardness on drawings or purchase specs, always state the full conditions and refer to the applicable ASTM or ISO standard.

Common HB hardness values for engineering materials

The following are approximate, commonly used reference ranges to help engineers quickly determine expected material behavior:

• Low-carbon structural steels (e.g., S235, A36): approx. 100–180 HBW.

• Quenched and tempered alloy steels (e.g., 42CrMo4, 4140): approx. 220–340 HBW (normalized) and 280–450 HBW (heat treated, depending on tempering).

• Tool steels after hardening and tempering: approx. 500–650 HBW in working condition.

• Gray cast iron: approx. 150–260 HBW depending on grade.

• Aluminum alloys: e.g., 6061-T6 around 90–100 HBW; 7075-T6 around 130–150 HBW.

• Copper alloys (brasses/bronzes): roughly 60–200 HBW depending on composition and cold work.

Materials below about 200 HBW are generally easy to machine with standard carbide tooling. Above 300 HBW, cutting becomes progressively more demanding, requiring coated tools, optimized coolant, and reduced speeds. Heat treatment, work hardening, and surface treatments like nitriding or carburizing can shift a material’s HB value by hundreds of points-something that must be verified through testing. Wear plate steels such as Hardox 400 are named directly after their target HBW, illustrating how central brinell values are to material selection.

HB hardness vs. other hardness scales (Rockwell, Vickers)

Different hardness scales exist because no single test is ideal for every material, thickness, or application. Conversions between them are commonly needed when a design spec uses HB but the lab reports HRC, or a cutting tool catalog lists HV.

Rockwell hardness is measured using scales HRC, HRB, and HRA. Rockwell C (HRC) covers hardened steels in the approximate range of 20–70 HRC. Rockwell B (HRB) applies to softer steels, copper alloys, and some aluminum, roughly 30–100 HRB. Rockwell tests measure the depth of penetration while Brinell measures indentation area-a key difference in methods.

Vickers hardness is measured using a diamond pyramid indenter, making it suitable for very hard or very thin materials. HV values for tungsten carbide tooling run approximately 1300–1900 HV, ceramics up to ~2000 HV, and CBN around ~3000 HV.

Brinell (HB/HBW) is especially suited for coarse-grained materials and large parts such as castings and forgings, where the larger indentation averages over grain-scale variations. Refer to ASTM E140 or Anebon’s common hardness comparison table for approximate conversion values between scales. Compared to direct testing, conversions should be treated as estimates-avoid relying on them for case-hardened or heterogeneous surfaces.

Role of HB hardness in CNC machining, forming, and OEM part design

HB hardness values directly affect every step of manufacturing at CNC machining services providers like Anebon. The workpiece hardness determines:

• Tool material selection (carbide vs. ceramic vs. CBN).

• Cutting parameters (speed, feed, depth of cut).

• Tool life and surface finish quality.

Practical machining thresholds based on HBW:

• Below ~180 HBW: generally good machinability with standard carbide tools; risk of built-up edge in very soft materials.

• 180–320 HBW: moderate machining difficulty; tool wear management and optimized coolant strategy required.

• Above ~320–350 HBW: hardened region where advanced tooling (ceramic, CBN) or grinding may be required for efficient removal.

In sheet metal fabrication, higher HB hardness increases forming loads, springback, and cracking risk, all of which influence bend radii and press selection. Anebon reviews customer drawings for specified HB or tensile strength and provides DFM feedback when the combination of hardness, geometry, and tolerance is likely to cause issues-whether the application is automotive gears, aerospace housings, or robotics wear plates.

Brinell hardness testing in practice

Accurate brinell hardness testing requires careful preparation:

• Surface grinding or polishing to remove scale and roughness.

• Ensuring sufficient thickness (at least 8–10× indentation depth) and distance from edges to avoid distortion of results.

• Cleaning and correct support of the part during loading.

Common test conditions are divided into subgroups based on the force-to-diameter-squared ratio (HB30, HB10, HB5, HB2.5). Higher loads and larger balls suit steels and large forgings; lower loads and smaller balls apply to thin sections and non-ferrous alloys. Brinell hardness testing is suitable for larger samples where the bigger indent provides a more representative reading.

Modern machines combine automated load control with digital imaging to measure the indentation diameter and calculate HBW quickly. Common sources of error include poor surface preparation, incorrect load, and mis-identification of the indentation edge. Anebon coordinates brinell testing within its ISO 9001:2015 quality processes, providing documented HBW results on inspection reports and material certificates.

Converting HB hardness to strength and design properties

Brinell hardness can correlate with ultimate tensile strength for carbon and low-alloy steels. A widely used rule of thumb is UTS (MPa) ≈ 3.45 × HBW, validated by recent studies on structural steels. This is useful but approximate-precision depends on alloy composition and conditions.

Engineers commonly use HB-to-strength conversions for:

• Selecting heat treatment targets for shafts, gears, and dies.

• Verifying that delivered material matches specification.

• Adjusting safety factors in design for highly loaded components.

However, conversions cannot replace full mechanical testing when fatigue, fracture toughness, or impact performance is critical. Anebon can work with customer-specified hardness or strength windows and coordinate appropriate testing through qualified partners.

Anebon’s approach to hardness control and quality assurance

Anebon Metal Products Limited, founded in 2010 in Dongguan, China, serves overseas OEMs with precision CNC machining, die casting, and sheet metal fabrication. Hardness testing is embedded in Anebon’s ISO 9001:2015 and ISO 14001:2015 quality system at multiple checkpoints:

• Incoming material verification (certificate review and spot brinell, rockwell, or vickers checks).

• In-process checks for heat-treated parts.

• Final inspection reports including HBW or equivalent hardness when specified.

Example project types where HB hardness is critical include hardened steel gear components requiring 280–320 HBW through-hardening, high-strength aluminum housings (e.g., 7075-T6 around 140 HBW) for aerospace electronics via 5 axis CNC machining, and wear-resistant industrial machine components with 400+ HBW surfaces. When requested hardness targets exceed what is practical for a chosen geometry, Anebon provides DFM feedback proposing alternative alloys or processes.

Summary and practical guidance for specifying HB hardness

• HB hardness (brinell hardness) is a widely used measure of indentation resistance, especially for steels and cast irons.

• Brinell hardness testing uses a spherical indenter under controlled load and is standardized by ASTM E10 and ISO 6506.

• Common values for engineering alloys span roughly 80–650 HBW, reflecting very soft to highly hardened conditions.

• Hardness has direct consequences for machining, forming, and in-service performance.

Checklist for design engineers:

• Always pair a target HBW range with the relevant test standard and conditions (e.g., HBW 10/3000).

• Ensure hardness requirements align with material grade, heat treatment, and intended machining process.

• Use conversion charts cautiously, especially when translating between HB, HRC, and HV.

Anebon can assist with selecting realistic HB hardness targets, arranging brinell hardness testing, and optimizing CNC machining parameters for those hardness levels.

Work with Anebon on hardness-critical parts

If you are developing parts where HB hardness is critical-whether for medical devices, robotics, automotive, or aerospace-send your drawings with hardness requirements for a detailed manufacturability review. Anebon supports projects from rapid prototyping through full production, including hardness testing, heat treatment coordination, and full documentation to international standards. Contact Anebon for a quote and let the engineering team recommend the right materials and hardness range for your specific application.
