Machining Stainless Steel: Practical Guidelines for Better Tool Life, Surface Finish, and Productivity

Introduction to Machining Stainless Steels

Machining stainless steel is substantially harder than working with carbon steel or low alloy steels. The material is tough, prone to work hardening, concentrates heat at the cutting edge, and produces long, difficult-to-manage chips. These machining characteristics mean that without the right parameters, shops burn through tools, fight poor finish, and lose hours to unplanned downtime.

This article delivers practical parameters-cutting speeds, feed rates, cutting fluid strategies, and setup tips-that many shops can apply immediately to stainless steel machining operations. Whether you’re roughing 304 pockets or finish-turning 17‑4PH shafts, the guidance here will help you protect your tools and your margins.

Stainless steels contain at least 10% chromium and fall into several families: austenitic (300 series), ferritic and martensitic (400 series), duplex stainless steels, and precipitation-hardening (PH) grades. Each family brings a different good combination of corrosion resistance, hardness, and high strength-but also different machining behavior. Broadly, the alloys with better corrosion resistance tend to be harder to cut.

Anebon Metal Products Limited, ISO 9001:2015 and ISO 14001:2015 certified, machines stainless steel parts across these families for aerospace, medical, and automotive OEMs out of its Dongguan facility. The pain points we see most from design engineers are:

• Rapid tool wear and frequent changeovers driving up cost per part

• Inconsistent surface finish and part quality caused by work hardening, chatter, and poor chip control

Why Stainless Steel Is Difficult to Machine

Two metallurgical factors sit at the core of the problem: work hardening and low thermal conductivity. Work hardening occurs when stainless steel is deformed during machining-the surface layer becomes significantly harder than the base material, and subsequent passes must cut through this tougher layer. Stainless steel’s high toughness increases strain on machine tools by 20% to 40% compared to mild steel, which directly accelerates tool wear and shortens tool life.

Because stainless steel has poor thermal conductivity, heat generated at the shear zone stays concentrated at the cutting edge instead of dissipating into the workpiece or chips. Temperatures can exceed 800 °C under poor conditions, degrading coatings, promoting built up edge, and causing heat tinting that damages corrosion resistance.

Low or intermittent feed rates make things worse. When the cutting tool rubs rather than shears, the surface ahead of the edge work-hardens aggressively. Compared to mild steel, austenitic grades produce long, continuous chips that wrap around tooling and clog flutes. The net result: shorter tool life, more downtime for changeovers, less predictable cycles, and lower productivity on every job.

Stainless Steel Grades and Their Machinability

Machinability varies widely by stainless steel family, alloying elements, and heat treatment condition. Grades optimized for good corrosion resistance or wear resistance generally cut slower. Design engineers should weigh machinability alongside environmental requirements when specifying grades-Anebon routinely advises on this trade-off during DFM reviews.

Austenitic Stainless Steels (200 & 300 Series)

Austenitic stainless steels are the most commonly machined types, widely used in food, medical, and marine applications for their excellent corrosion resistance. 304 stainless steel is the most widely used grade; 316 adds molybdenum for better pitting resistance but machines slower. Both work harden rapidly and produce long, stringy chips during turning and milling.

CarTech 303 is a free-machining stainless steel grade with sulfur additions that improve machinability by 40–60% over 304, though at the cost of reduced corrosion resistance and weldability-giving it only moderate corrosion resistance. For 300 series work, coated carbide tooling and high-pressure cutting fluids are essential. Keep cutting speeds conservative and feed rates positive to avoid glazing the surface.

Ferritic and Martensitic Stainless Steels (400 Series)

The 400 series grades (410, 420, 430) are magnetic and chosen where higher hardness or wear resistance matters-pump shafts, valves, surgical instruments. In the annealed condition, these grades generally machine better than austenitic 300 series, offering shorter chips and lower adhesion.

However, after heat treatment, martensitic grades like 420 can reach 50+ HRC, dramatically increasing cutting forces. More robust tool materials, slower speed, and rigid setups become non-negotiable. The trade-off: improved chip control versus higher risk of edge chipping when machining hardened conditions.

Duplex and Precipitation-Hardening Stainless Steels

Duplex grades (2205, 2507) and 17‑4PH deliver high strength and corrosion resistance for offshore, energy, and aerospace parts. Their elevated yield strength demands rigid fixturing, stable toolholding, and lower cutting speeds-often 30–40% below what you’d run for 316.

The heat treatment condition of 17‑4PH matters enormously: annealed material (~33 HRC) cuts reasonably well, while H900 condition (~44 HRC) requires significantly reduced speeds and tougher carbide grades. Anebon routinely machines these alloys using 5-axis CNC machining and maintains tight tolerances despite residual stress from aging.

Machine Setup and Rigidity for Stainless Steel Machining

Stainless steel requires a very rigid setup to minimize vibration and chatter. Light-duty or hobby-grade machines simply cannot maintain the consistent engagement these alloys demand at production rates. Use heavy-cast machine beds, high-torque spindles, and precision toolholding (shrink fit or hydraulic chucks).

Minimize tool overhang-long, slender end mills deflect under the higher cutting forces of stainless, wrecking surface finish and accelerating wear. Monitor spindle load continuously and listen for chatter; both are early indicators that the setup needs correction before parts are scrapped.

Workholding and Vibration Control

Proper clamping means full support, balanced forces, and soft jaws or custom fixtures to prevent distortion-especially on thin-walled stainless steel parts. For turning, use steady rests or tailstocks on long, slender workpieces. Vibration during machining stainless steels is one of the fastest paths to poor finish, out-of-tolerance features, and premature tool failure.

Use shorter tools whenever possible and adopt constant-engagement toolpaths to reduce load spikes. Anebon custom-designs fixtures for complex OEM components, including thin-walled medical-grade stainless parts where even minor deflection causes rejects.

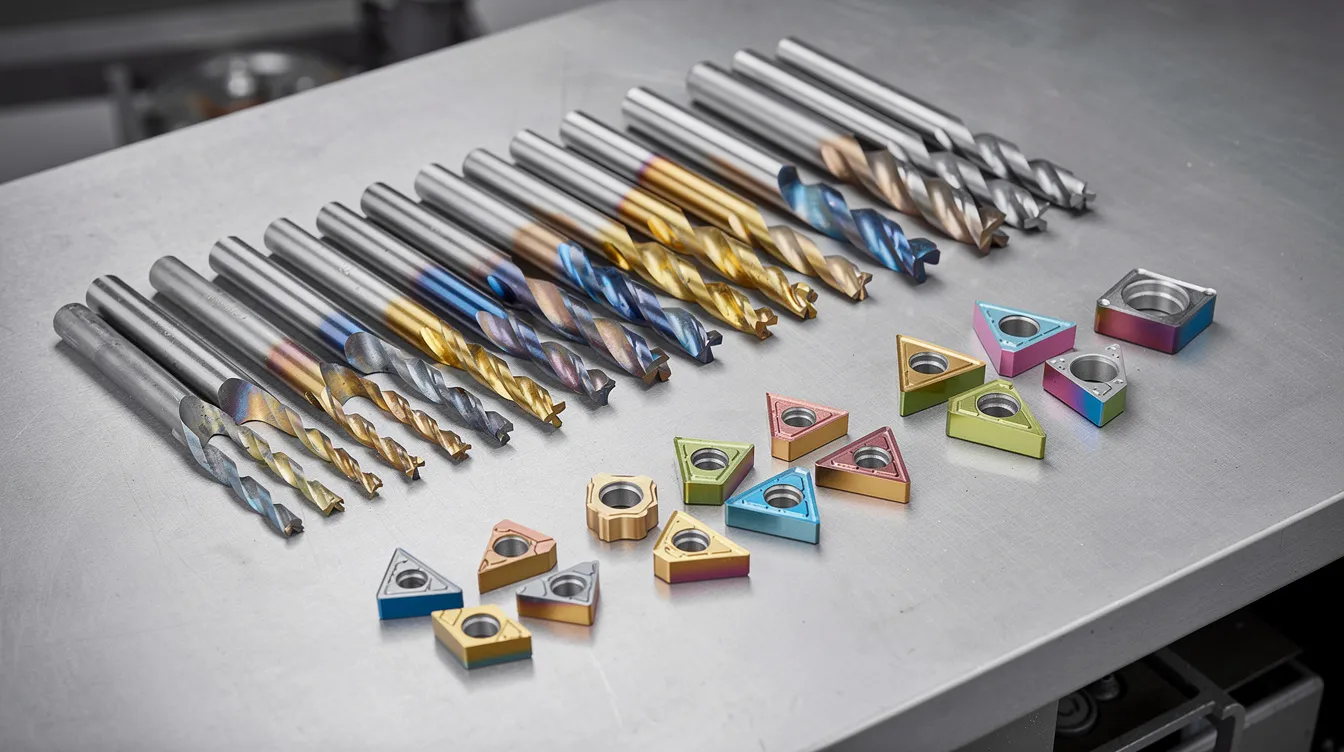

Tool Materials, Geometry, and Milling Cutters for Stainless Steels

Correct tooling selection starts with the substrate. Solid carbide tools are essential for machining stainless steel at production rates. High speed steel (HSS) or cobalt HSS (M42) still works for low-volume prototyping, but carbide handles the heat and abrasion far better. Coated carbide tools improve wear resistance in stainless machining-TiAlN and AlTiN coatings form a protective alumina layer at elevated temperatures, reducing friction and extending tool life.

Tool geometry affects surface finish and tolerances significantly. Sharper tools are crucial to prevent material sticking in stainless steel machining; using sharp tooling prevents rubbing and reduces cutting pressure. A positive rake angle, polished flute surfaces, and an appropriate corner radius all contribute to cleaner cuts and better chip evacuation.

End Mills and Milling Cutters for Stainless Steel

Use a 4 or 5 flute end mill for roughing stainless steel-this provides a strong core while leaving adequate chip space. Finishing end mills should have 5 or more flutes for smoother surface results. Variable pitch and variable helix milling cutters reduce harmonic chatter, which is especially problematic in austenitic grades like 304 and 316.

Use chipbreaker geometry for effective slotting in stainless steel-chip splitters segment those long continuous chips that would otherwise wrap around the cutter. Climb milling improves tool life compared to conventional milling for stainless steel because it produces thicker chips on entry and thinner on exit, reducing heat at the edge.

Turning Inserts, Drills, and Taps

Stainless-specific carbide grades for turning inserts must balance toughness for interrupted cuts and wear resistance for continuous operation. For drilling, use split-point drills (130–140° point angle) with strong web designs to reduce walking and thrust. Coated carbide drills with through-coolant are essential for deep holes in 304 or 17‑4PH, managing heat and chip evacuation simultaneously.

For tapping, spiral flute taps handle blind holes best; spiral point taps suit through holes. High-performance coatings reduce torque and prevent material buildup in threads. Anebon maintains standardized process tooling libraries for each stainless grade to ensure repeatable tool life across batch and repeat orders.

Cutting Speeds, Feed Rates, and Depth of Cut in Stainless Steel Machining

Optimized speeds and feeds matter more in stainless steel machining than in free-machining carbon steels. Recommended cutting speeds for stainless steel range from 100–350 SFM with carbide tooling, depending on grade, condition, and operation. The principle: keep speed moderate and feed rate positive to avoid rubbing and the resulting work hardening.

Stainless steel machining benefits from consistent engagement-no dwelling, no rubbing-and adequate depth of cut to stay beneath the previously work-hardened layer.

Feed Rates and Chip Load Control

Too-low feed rates cause rubbing and accelerated work hardening; too-high feeds break tools or produce poor finish. Maintaining consistent feed per tooth prevents work-hardening in stainless steel. Starting chip loads for a ½-inch end mill in 304/316: roughing at ~0.003–0.005 in/tooth, finishing at ~0.001–0.002 in/tooth.

When changing spindle speed or flute count, always recalculate feed per tooth-not just overall feed rate. Higher feed rates are achievable with rigid setups and good coolant. Anebon monitors spindle load and tool wear data on stainless jobs to refine chip loads for future runs.

Depth of Cut and Engagement Strategies

High-Efficiency Milling uses lighter radial and deeper axial depths of cut to spread wear across more of the flute while keeping heat and deflection low. Constant-engagement toolpaths stabilize cutting tool load and extend tool life in tough grades like 316 or duplex.

For turning, take cuts deep enough to get beneath the work-hardened surface layer. Avoid repeated spring passes-they only rub hardened material and worsen dimensional stability.

Cutting Fluids, Cooling, and Corrosion Resistance

Cutting fluids are essential for machining stainless steels. They cool the cutting zone and provide lubrication to reduce friction and built up edge. Using copious amounts of coolant is mandatory to prevent tool failure in stainless steel-this is not an area to economize.

At higher cutting speeds, cooling is more important than lubrication. Emulsifiable oils provide better cooling than mineral oils and are the standard for carbide operations. High oil-content emulsions improve lubrication and tool life while aiding chip evacuation. Mineral oils are suited for severe machining at low speeds, such as heavy tapping with HSS tools. Overheating can cause heat tinting that damages the passive oxide layer, compromising corrosion resistance in critical applications. Stress relieving below 900°F preserves corrosion resistance when post-machining treatment is needed.

Coolant Application and Maintenance

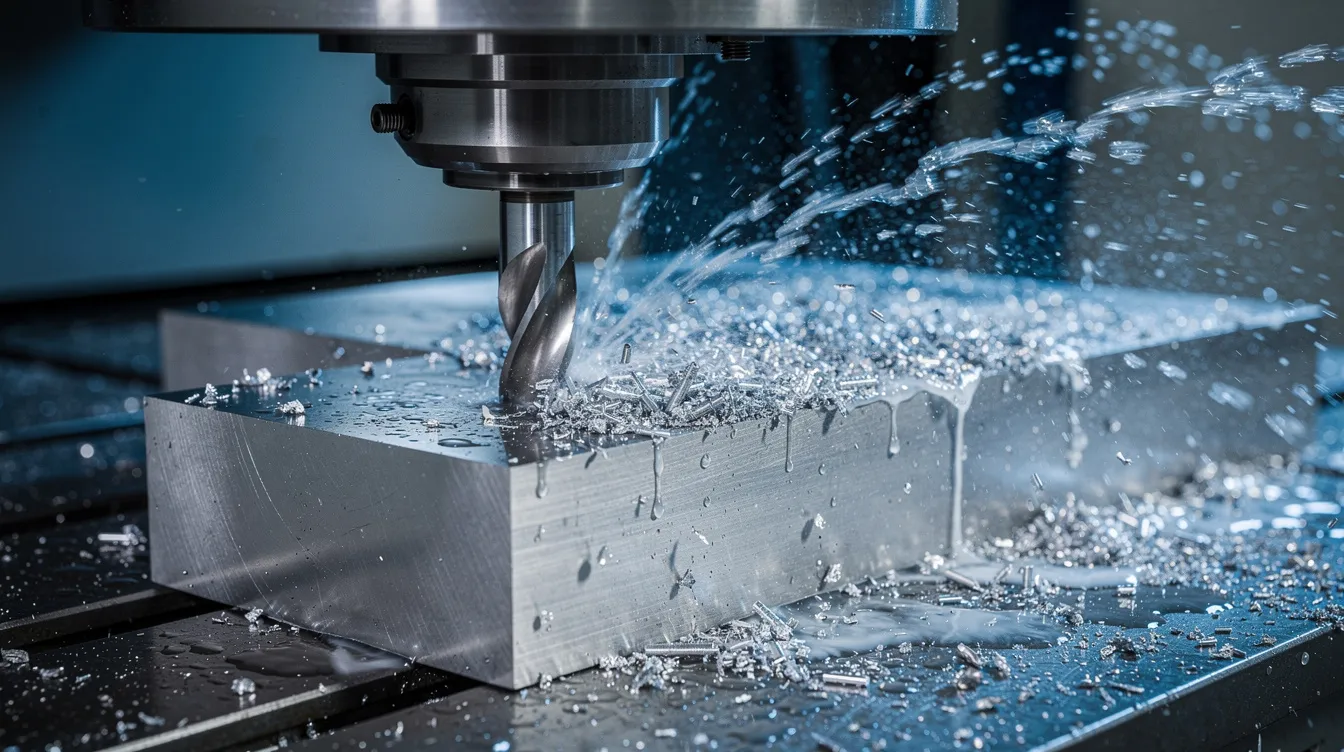

Flood coolant is crucial for controlling temperatures in stainless steel machining. Direct coolant precisely at the cutting zone; high-pressure coolant helps break chips and wash them out of the cut zone, particularly during deep drilling and tapping with through-tool delivery.

Poor coolant maintenance-wrong dilution, contamination-causes workpiece staining and reduced corrosion. Clean stainless steel parts thoroughly after machining to remove residues. Anebon maintains documented coolant management processes aligned with ISO 14001:2015 environmental standards.

Achieving Surface Finish, Tolerances, and Consistency in Stainless Steel Parts

Achieving tolerances of ±0.0005″ is now common on precision stainless steel parts, but holding them requires stable processes, sharp tooling, and rigorous inspection. Higher hardness improves surface finish but increases tool wear-a trade-off that must be managed through more tooling changes and process monitoring.

Surface finish can be enhanced by increasing speeds and reducing feeds during finish passes. Dull tools cause rubbing and premature tool failure in stainless steel machining, so tool condition must be monitored continuously. Specify finish and tolerance requirements early in the design stage to avoid costly secondary grinding or polishing. Anebon holds tight tolerances on precision stainless steel parts using in-process inspection and CMM verification.

Common Problems and How to Avoid Them

The most frequent issues in stainless steel machining and their fixes:

• Work hardening – caused by rubbing, dull tools, or too-light cuts. Increase feed, maintain sharp edges, take adequate depth of cut.

• Built up edge – material adheres to the cutting tool, ruining surface finish. Use coated tools with polished rake faces, increase coolant, adjust speeds.

• Edge chipping – from interrupted cuts or excessive hardness. Switch to tougher carbide insert grades, reduce radial engagement, improve setup rigidity.

• Poor finish – driven by vibration, deflection, or worn tooling. Shorten tool overhang, use variable helix cutters, check workholding.

• Long uncontrolled swarf – typical in austenitic grades. Apply chipbreaker inserts or chip-splitting end mills; ensure proper coolant flow.

Document tooling, parameters, and lot-specific behavior for every job. This data is essential for building a repeatable, cost-effective process across production orders.
