Definition of CNC Machining: A Practical Guide for OEM Engineers

If you design or procure precision parts, understanding the definition of CNC machining is foundational. This guide breaks down exactly what CNC machining is, how the process works from CAD file to finished part, and what you should know when evaluating suppliers for your next OEM project.

What Is CNC Machining? (Answer the Query Immediately)

CNC machining is a computer-controlled, subtractive manufacturing process that removes material from a solid workpiece using cutting tools to produce a finished part. The cnc machine definition is straightforward: it is a programmable system that controls cutting tools along multiple axes to create precise geometries with high repeatability. Unlike additive manufacturing processes such as 3D printing, which build parts layer by layer, CNC machining starts with a block of raw material and carves it down to the desired shape.

Compared to manual machining, where an operator physically guides machine tools, CNC technology automates tool movement through pre programmed software, eliminating variability and dramatically increasing throughput. CNC machines-including mills, lathes, cnc laser cutters, and more-are central to producing high precision components for aerospace, automotive, and medical devices. At Anebon Metal Products Limited, we use CNC machining to hold tolerances down to ±0.002 mm for custom OEM parts.

Key characteristics of CNC machining:

• Fully automated motion controlled via digital instructions (G-code/M-code)

• Multi-axis movement (3, 4, or 5 axes) enabling complex shapes

• Subtractive process-removing material rather than adding it

• Broad material compatibility: metals, plastics, alloys, and composites

• CNC machining achieves tolerances within 0.025 mm on critical features

• Closed-loop feedback systems using encoders for real-time accuracy correction

CNC Meaning and CNC Machine Definition

The term CNC stands for Computer Numerical Control. The word “numerical” refers to coordinate-based instructions-positions along the x axis, Y, Z, and rotational axes-that define every movement the machine makes. CNC stands for a system where a built-in computer reads coded instructions and translates them into precise mechanical motion.

A CNC machine is any machine tool-whether a cnc milling machine, lathe, or machining center-guided by a digital controller that executes those instructions automatically. Here is what separates a CNC machine from conventional machining equipment:

• Servo motors and ball screws replace manual handwheels, converting digital signals into precise axis movement

• A digital controller interprets the program and coordinates motion across all axes simultaneously

• Programmable toolpaths allow the machine to produce complex contours, pockets, and multi-face features without manual control

• Once the program, workpiece, and tools are set, automated machining runs with minimal operator intervention

Typical examples of CNC machine work include machining aluminum housings for electronic devices (creating pockets, holes, and bosses in a single setup) or turning stainless steel surgical fixtures such as connectors, spacers, and threaded fittings.

How Does a CNC Machine Work? (Core Principles)

CNC machines translate a digital model into precise tool movements. The core components in this chain are the CAD model, CAM-generated toolpaths, machine controller, axis drives, cutting tools, and feedback sensors. Here is how CNC machining works at its most fundamental level:

• The controller reads G-code instructions line by line, interpreting each command as a specific motion or function

• Signals are sent to servo motors that move the spindle or worktable along programmed axes

• The cutting tool engages the workpiece, removing material through milling, turning, drilling, or other machining operations

• Encoders and sensors provide closed-loop feedback, comparing actual position against commanded position and correcting for backlash, thermal drift, or tool deflection

The Cartesian coordinate system defines machine movement. CNC mills typically operate on a three-axis system (X, Y, Z) for prismatic shapes. Adding a fourth axis (rotation) allows indexing or turning features. Five-axis machines add two rotational/tilt axes, enabling the tool to approach the part from virtually any direction-critical for undercuts and organic surfaces.

Modern cnc machinery integrates automatic tool changers, coolant systems, in-cycle probing for automated inspection, and chip conveyors. CNC machines use programmed instructions to control cutting tools with zero reliance on manual methods during the cutting process itself.

From Digital Design to Machine Motion (CNC Programming Basics)

CNC programming converts a part design into machine readable instructions-usually g code for motion commands and M-code for auxiliary functions. The programming software translates geometry into a language the machine executes directly.

• Computer aided design cad software creates the 2D or 3D model with all dimensions and tolerances defined

• Computer aided manufacturing cam software (also called cam software) imports the CAD geometry and generates toolpaths, selecting operations, tools, feeds, and spindle speeds

• G-code commands handle motion: G0/G1 for linear moves, G2/G3 for circular interpolation

• M-code handles auxiliary functions: spindle on/off, coolant control, tool change (M6)

A concrete example: programming a cnc mill to machine an aluminum bracket requires roughing passes to remove bulk material with a larger end mill, followed by finishing passes for smooth pockets and sharp corners. CNC machines operate using G-code to control movements through every step of this sequence.

Anebon engineers can help optimize cnc programming for manufacturability and cycle time, selecting tool diameters and strategies that reduce vibration and maximize tool life-particularly valuable for overseas OEM projects where iterating on programming remotely demands getting it right early.

The CNC Machining Process Step by Step

The cnc machining process follows a structured workflow from concept to shipped part. Whether you need a single prototype or 10,000 production units, the same stages apply.

The cnc machining process includes design, programming, setup, and machining, followed by inspection and finishing. This cnc manufacturing process supports everything from rapid prototyping through full-scale production for parts used in medical devices, robotics, and aerospace components.

Main stages at a glance:

1. CAD model design

2. CAM programming and toolpath generation

3. CNC machine setup

4. Machining operation execution

5. Inspection, finishing, and shipping

1. CAD Model Design

CNC machining starts with a CAD model design that fully defines geometry, tolerances, and critical features. The cnc process begins here because every downstream decision-toolpath, fixture, inspection criteria-depends on what the model specifies.

• Common file formats for transferring designs: STEP, IGES, Parasolid, or native SolidWorks/Pro-E files. STEP is the industry standard for OEM procurement.

• DFM (design for manufacturability) considerations at this stage include minimum wall thickness for rigidity, ensuring tool access on all faces, specifying adequate fillet radii on internal corners, and selecting the right material for the application.

• Involve your manufacturer early. Anebon provides DFM feedback before quoting so engineers can reduce machining cost and lead time before the first chip is cut.

2. CAM Programming and Toolpath Generation

After CAD, the file is imported into computer aided manufacturing (CAM) software to generate the cnc programming that will drive the machine.

• Typical CAM tasks: selecting operations (facing, roughing, finishing), choosing tools (end mills, drills, reamers), setting feeds and speeds, and defining toolpath strategies

• Good cnc programming balances three competing goals: tool life, surface finish, and cycle time. For high volume production OEM orders, shaving seconds per part across thousands of pieces has a measurable cost impact.

• Example: programming a 5-axis operation to machine a titanium medical implant requires planning tool orientation to avoid collisions, managing heat generation with conservative spindle speeds, and scheduling finish passes that achieve the surface quality required for biocompatible implants

3. CNC Machine Setup

Machine setup includes loading the CNC program, mounting the workpiece, and installing cutting tools. This stage directly determines whether dimensional accuracy will meet specification.

• Workholding methods: vises, chucks, custom fixtures, and vacuum tables for thin sheet components

• Setting work offsets and tool length offsets is critical. Work offsets define the part’s zero reference point; tool offsets compensate for each tool’s length. Errors here translate directly into dimensional errors on the finished part.

• Anebon’s typical setup protocol for multi-part aluminum and stainless steel batches includes probing work offsets, verifying clamping force distribution to prevent distortion, and dry-running critical sequences before cutting

4. Machining Operation Execution

Once setup is validated, the operator starts the program and the machine executes the planned sequence autonomously. CNC machining automates the process of manufacturing parts from this point forward.

• Operations may include CNC milling, cnc turning, drilling, tapping, and in some cases specialized processes like electrical discharge machining or wire edm

• Operators monitor spindle load, tool wear indicators, and coolant flow, but the motion itself is fully automated machining-the machine executes every programmed move without manual intervention

• CNC machines operate continuously without fatigue, maintaining consistent quality across an entire production run

Example: machining 500 aluminum heat sinks in a 3-axis cnc mill with automatic tool changer. The machine runs roughing, multiple finishing passes, and hole-making operations sequentially, with the operator monitoring but not guiding the cutting process.

5. Inspection, Finishing, and Shipping

Finished parts are measured against the drawing using calibrated instruments: calipers, micrometers, CMMs, and optical inspection systems. For features like thread fit, surface finish, and geometric tolerances, specialized gauges verify conformance.

• Common surface treatments applied after CNC machining include anodizing (Type II and Type III hard-coat), powder coating, bead blasting, polishing, electropolishing, and plating. Each treatment can affect surface roughness and dimensions slightly, so drawings should specify “as-machined” vs. “as-finished” requirements.

• Anebon maintains ISO 9001:2015 and ISO 14001:2015 certifications. Documentation typically provided to OEM clients includes inspection reports, material certificates, and first-article inspection records.

• Approved parts are packaged to protect delicate surfaces and shipped worldwide for assembly into end products.

Main Types of CNC Machining Operations

The major subtractive machining operations are CNC milling, CNC turning, and CNC drilling, along with ancillary processes like tapping, reaming, and boring. Each is selected based on part geometry:

• Flat surfaces, pockets, and prismatic features → milling

• Cylindrical shapes, shafts, and threaded parts → turning

• Holes, threads, and fastener seats → drilling, tapping, reaming

Anebon combines multiple operations-milling plus turning plus secondary machining-to deliver complete, ready-to-assemble components using multiple tools in a coordinated manufacturing process.

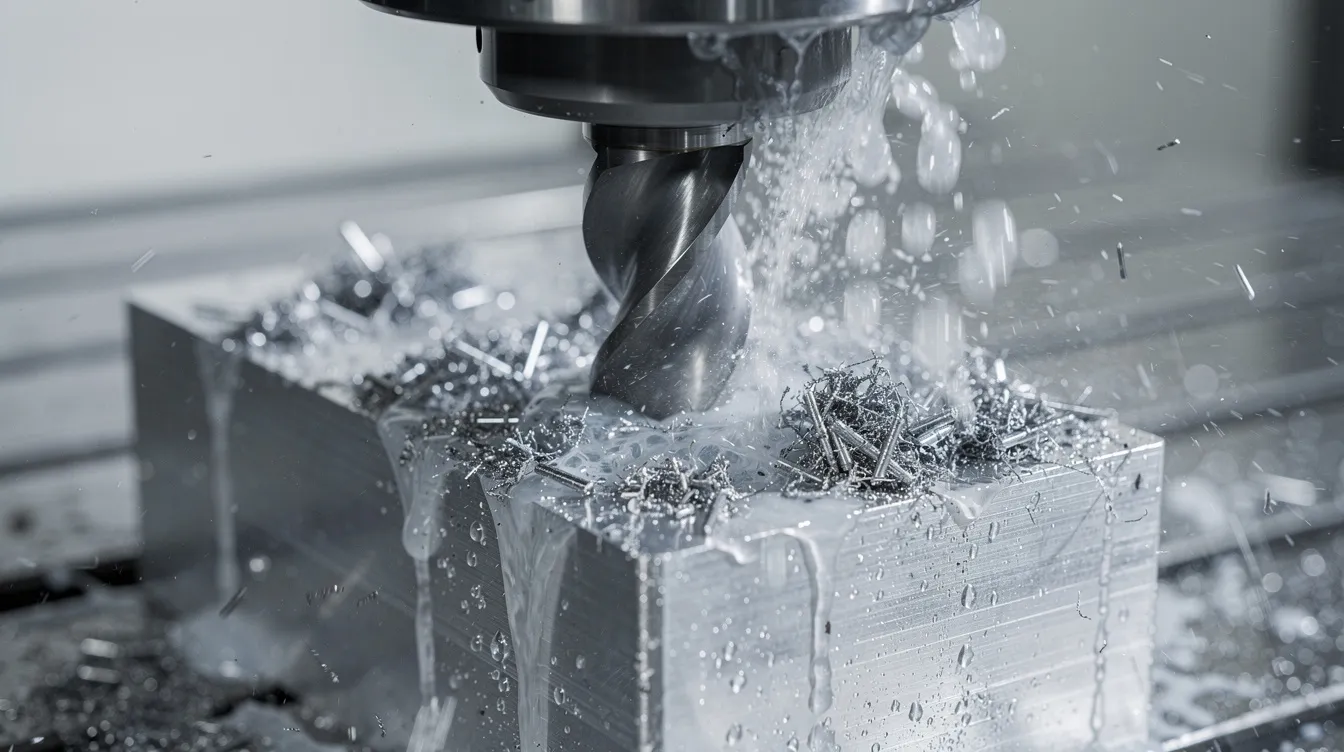

CNC Milling

CNC milling uses rotating cutting tools to remove material from a stationary workpiece. It is the most versatile cnc machining process for producing non-cylindrical parts.

• Face milling produces flat surfaces; peripheral milling creates contours; 3D contouring handles complex curved geometries

• CNC mills typically operate on a three-axis system for simpler shapes. Four-axis adds rotation for multi-face machining without re-clamping. Five-axis enables undercuts and organic surfaces.

• CNC machining allows for high-speed production of complex parts, with general tolerances of ±0.05 mm and precision features achievable at ±0.01 mm

• Common use cases: aluminum enclosures, heat sinks, brackets, and precision plates for electronics and industrial automation systems

CNC Turning

CNC turning machines a rotating workpiece with a stationary single-point cutting tool, making it the most efficient operation for cylindrical components. CNC lathes are primarily used for producing cylindrical components such as shafts, bushings, valve bodies, and threaded connectors.

• Common operations: OD/ID turning, grooving, facing, boring, and thread cutting

• Live tooling on modern turning centers allows combining turning and simple milling features in a single setup, reducing handling and improving concentricity

• Examples: hydraulic fittings, medical instrument connectors, precision spindle components

• Turning is typically more cost-effective than milling for round parts because material removal rates are higher and setups are simpler

Drilling, Tapping, and Other Hole-Making Operations

CNC drilling uses a rotating drill bit to create precise holes at specified coordinates. Beyond basic drilling, several related operations ensure holes meet functional requirements:

• Tapping cuts internal threads for fastener engagement

• Reaming refines a drilled hole to a precise diameter, achieving tolerances of ±0.0127 mm or better

• Countersinking and counterboring create fastener seats for flush or recessed bolt heads

Hole quality is critical for assembled products like medical devices and aerospace components where fit and sealing matter. Example: drilling and tapping hundreds of M3 holes in a stainless steel instrument chassis requires precise positional accuracy across all features.

Types of CNC Machines and Related Technologies

The term “cnc machines” covers a wide range of cnc equipment, from simple 3-axis mills to advanced 5-axis machining centers and cnc laser systems. Selecting the right CNC machine depends on material, geometry, tolerance requirements, and production volume.

Anebon primarily operates precision cnc milling machines, cnc lathes, and 5-axis machines, supplemented by die casting and sheet metal fabrication capabilities. For specialized processes like laser cutting, we collaborate with qualified partners when projects require it.

Beyond milling and turning, other types of cnc equipment serve specific roles. CNC EDM machines use electrical discharges to remove material from workpieces-a process also called spark machining or electrical discharge machining. CNC water jet cutters, used in waterjet cutting, can cut hard materials like granite and metal without heat-affected zones. CNC plasma cutters use a high-temperature plasma arc for cutting thick plate. CNC routers handle large-format softer materials.

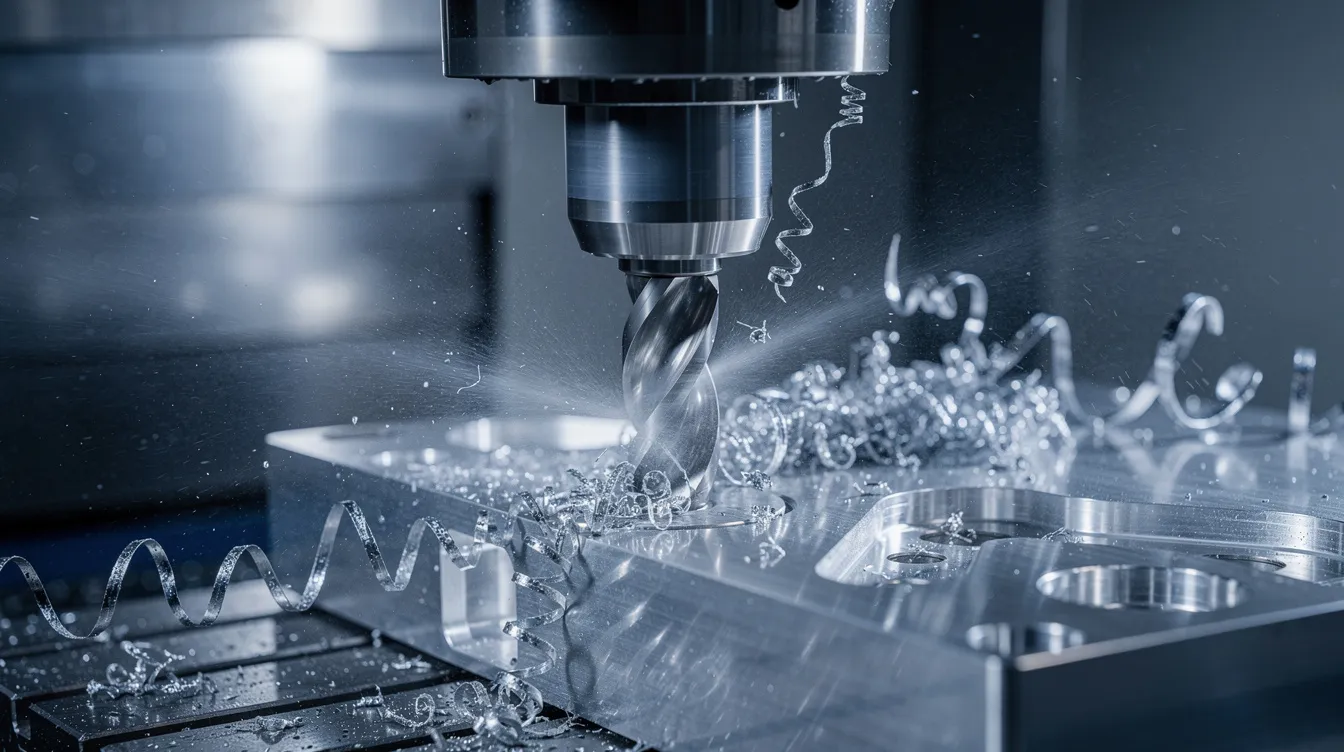

CNC Machining Centers (Mills)

CNC machining centers are advanced cnc milling machines equipped with automatic tool changers, full enclosures, and multi-axis capability. They represent the workhorse of modern manufacturing for prismatic parts.

• Vertical machining centers (VMCs) are preferred for most plate-style and housing-type parts. Horizontal machining centers (HMCs) excel at multi-side machining and heavy chip evacuation.

• These machines produce complex prismatic parts for robotics, industrial machinery, and electronic housings

• Materials most often processed: aluminum alloys, stainless steels, titanium, and engineering plastics like PEEK and Delrin

• Multiple tools are stored in the tool magazine and automatically loaded, enabling uninterrupted machining operations across different feature types

CNC Lathes and Turning Centers

CNC lathes range from simple 2-axis machines to multi-axis turning centers with live tooling and sub-spindles. Swiss machining, a specialized form of CNC turning, uses a sliding headstock for ultra-precise small-diameter parts. Manual lathes, by comparison, cannot match the consistency or speed of their CNC counterparts.

• Turning centers efficiently produce round parts such as spindles, connectors, and precision bushings

• Automated bar feeders and parts catchers increase productivity for large batch runs, enabling lights-out operation

• Anebon uses turning centers to complement milling, delivering complete part machining without outsourcing secondary operations

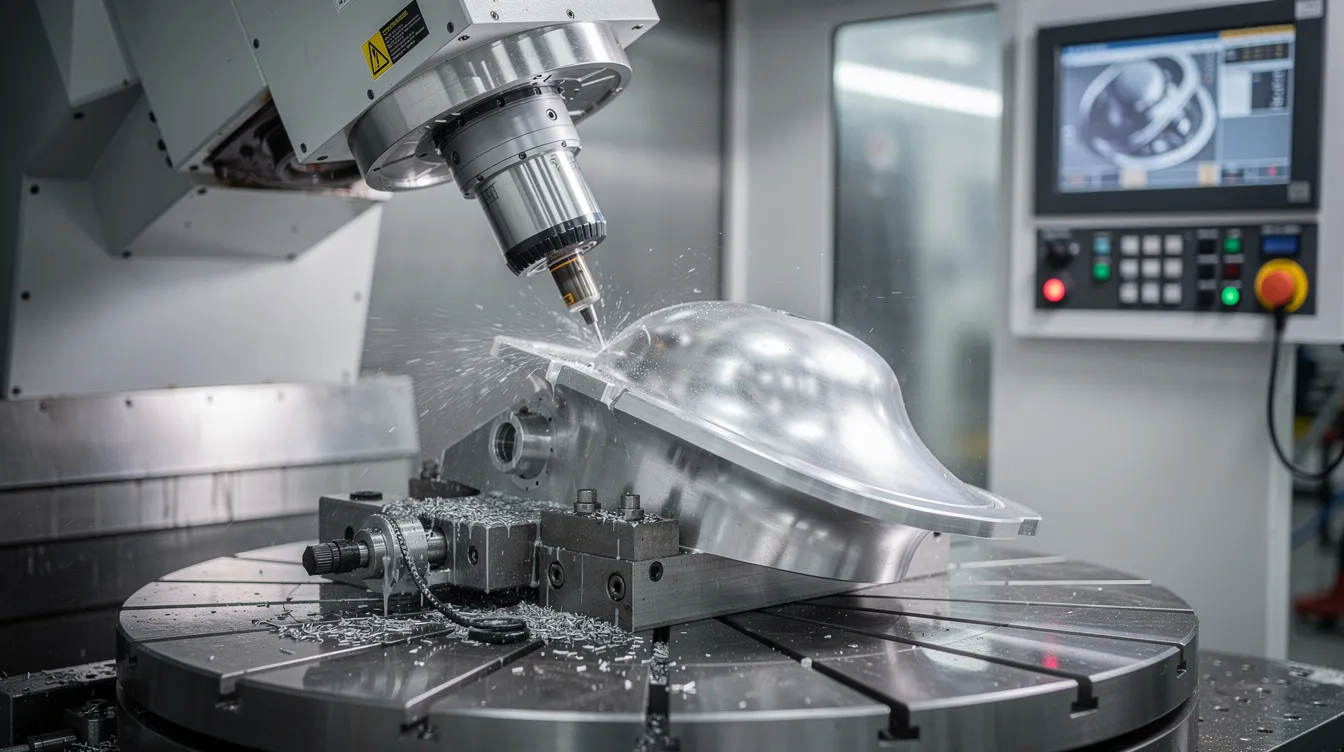

5-Axis CNC Machines

Five-axis CNC machining adds two rotational axes to the standard X, Y, Z, allowing the tool to approach the part from virtually any direction in a single setup. This is complex machinery that delivers significant practical advantages:

• Fewer setups mean better positional accuracy between features and shorter lead times

• Better surface quality on sculpted surfaces because the tool maintains optimal contact angle

• Ability to machine undercuts and complex organic shapes impossible on 3-axis machines

• Concrete examples: turbine-like impellers, orthopedic implants, and complex aerospace brackets

Anebon’s 5-axis capability is particularly valuable for high-value parts where precision machining and surface finish requirements are critical.

CNC Laser Cutting and Related Processes

CNC laser cutting uses a focused laser beam guided by CNC systems to cut sheet metal and thin plate with high precision. CNC laser cutting machines provide clean cuts with minimal heat-affected zones, making them ideal for intricate profiles.

• Laser cutting is best for 2D profiles and intricate cutouts, not 3D sculpting-that remains the domain of milling

• Typical materials: carbon steel, stainless steel, and aluminum in thicknesses from thin foil to roughly 25 mm depending on laser power

• Laser cutting is often the first step in sheet metal fabrication, followed by bending and secondary CNC machining where tighter tolerances are required

• Plasma cutters and waterjet cutting systems complement cnc laser for thicker materials or those sensitive to heat

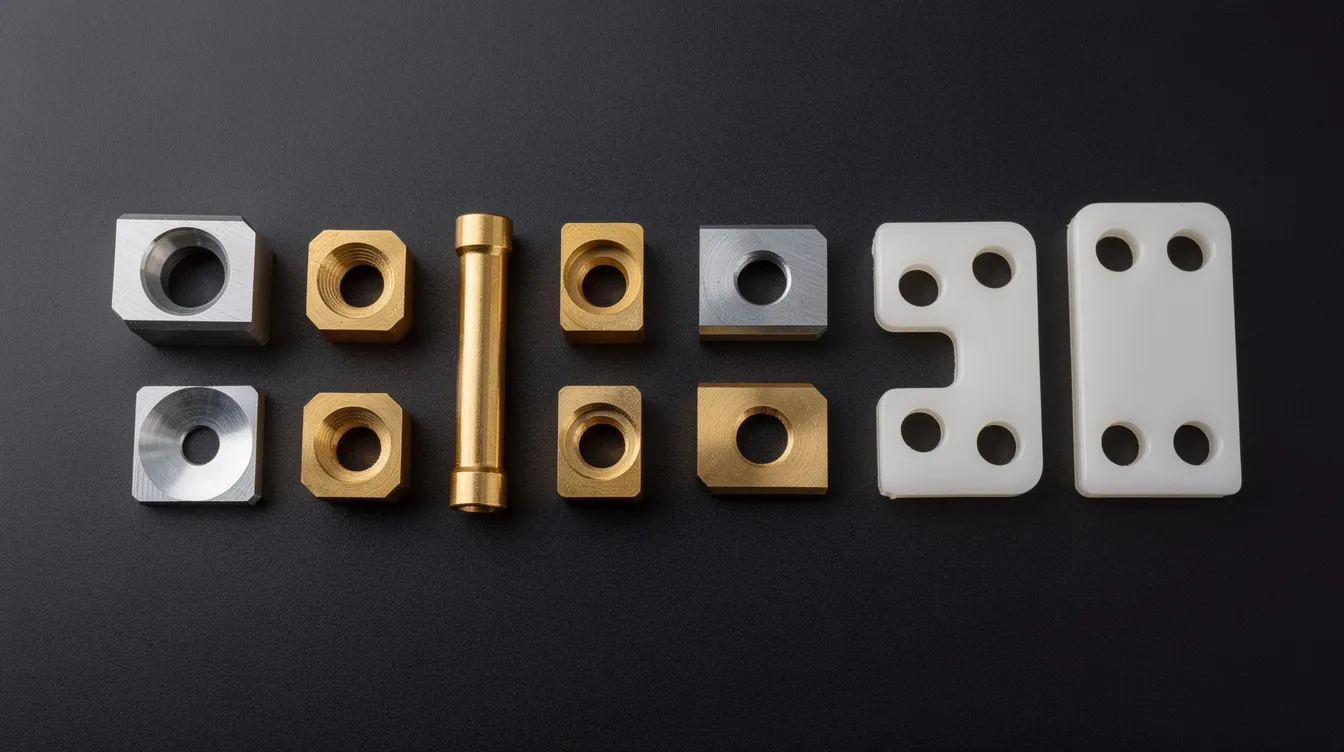

Materials Used in CNC Machining

CNC machining produces parts from materials like metal and plastic, with cutting parameters tailored to each material’s properties. Material choice drives tool selection, spindle speeds, feed rates, and the achievable tolerances and surface finish.

Anebon’s typical materials include aluminum alloys (6061, 7075), stainless steels (304, 316, 17-4PH), tool steels, brass, copper, titanium, and engineering plastics like PEEK and Delrin.

Metals Commonly Machined

CNC machining uses metals like aluminum and steel as its primary workpiece materials. Each metal family demands different approaches:

Metal	Key Properties	Typical Applications	Machining Notes
Aluminum (6061, 7075)	Lightweight, excellent machinability	Aerospace brackets, electronic enclosures	High cutting speeds (200–500 m/min); sharp carbide tools
Stainless Steel (304, 316)	Corrosion resistant, strong	Food processing, medical, marine	Slower speeds, heavy coolant, higher tool wear
Titanium (Ti-6Al-4V)	High strength, biocompatible	Implants, aerospace structures	4–6× longer cycle time than aluminum; heat management critical
Copper & Brass	Excellent conductivity	Electrical contacts, fluid components	Good machinability; brass can smear on tools

Aluminum is preferred for its high machinability and low weight. Steel alloys like 304 stainless provide high strength for parts exposed to corrosive environments. Titanium is used in aerospace and medical applications for its biocompatibility, though it requires more careful cnc programming due to low thermal conductivity and work-hardening tendency. CNC parameters-feeds, speeds, and tools to remove material-must be adapted to each metal type.

Plastics and Specialty Materials

CNC machining handles engineering plastics for applications requiring electrical insulation, lightweight construction, or chemical resistance. Plastics like Nylon and Delrin are machined into gears and housings where metal would be unnecessarily heavy or conductive.

• Applications include insulating components for electronics, lightweight housings, and non-metallic parts in medical devices

• Special considerations: plastics have higher thermal expansion, lower stiffness, and can deform under clamping or tool forces. Sharp cutting tools to remove material cleanly are essential, and coolant selection matters (some plastics absorb moisture)

• Composites like G10/FR4 require diamond-coated or PCD tooling and proper dust extraction to protect both the part and the operator

Advantages of CNC Machining for OEM Production

CNC machining is chosen for OEM parts because it delivers what matters most in production: precision, repeatability, and scalability from prototypes to large scale production. CNC machining is a subtractive manufacturing process that serves as the backbone of automated manufacturing across the manufacturing industry.

Precision, Repeatability, and Tight Tolerances

CNC machining achieves high precision with tolerances within 0.025 mm on critical features. For standard features, CNC machining can produce parts with tolerances often within ±0.125 mm, with precision machining bringing that down significantly. Anebon achieves ±0.002 mm on the most demanding dimensions.

• CNC systems ensure consistent results across thousands of units because the program, not the operator’s hand, controls every cut

• CNC machines can produce thousands of identical parts consistently, making them ideal for high volume production of aerospace flight hardware, surgical instruments, and precision assemblies

• CNC machining reduces human error significantly compared to manual methods, because the machine follows the same programmed path every cycle

Efficiency, Automation, and Cost Control

The cnc machining process is fully automated for efficiency once programming and setup are complete. CNC machines operate continuously without fatigue, enabling extended production runs that manual machining simply cannot match.

• CNC machining reduces cycle times by an order of magnitude compared to conventional machining and manual methods

• CNC machining minimizes material waste through software simulation-CAM software verifies toolpaths virtually before any material is cut

• Reduced scrap rates and fewer human errors translate to lower cost per part, especially for medium-to-high volumes

• Anebon combines CNC machining with die casting or sheet metal fabrication for cost-optimized part strategies, selecting the right manufacturing process for each feature

Design Flexibility and Prototyping Speed

Changing a part design typically requires only updating the CAD file and regenerating the CNC program-no new hard tooling, no mold modifications. This is the core advantage of CNC machining for industrial automation and R&D teams.

• Machined prototypes can be delivered in days, with pilot production scaling in weeks

• The same cnc equipment that makes your prototype makes your production parts, so prototype validation directly predicts production quality

• Anebon supports iterative design for electronics and robotics customers in Europe and North America, enabling rapid design-test-refine cycles without long tooling lead times

Key Applications of CNC Machining

CNC machining is relied upon across nearly all major industries. CNC machining is widely applied in industries needing high precision, from single prototypes to annual volumes in the tens of thousands. The same cnc manufacturing process supports each of these sectors.

Medical Devices and Healthcare

CNC machining manufactures custom medical devices and surgical instruments where precision, traceability, and biocompatibility are non-negotiable.

• Typical products: instrument handles, surgical trays, implant components, and diagnostic equipment housings

• Materials: titanium and 316L stainless steel, chosen for biocompatibility and corrosion resistance

• Surface finish requirements are strict, often requiring Ra 0.8 µm or better on contact surfaces

• Anebon’s process control and documentation practices align with the traceability requirements medical OEMs demand

Aerospace and Aviation

CNC machining technology is utilized in aerospace and defense industries for components where failure is not an option. CNC machining creates turbine blades for the aerospace industry and produces components for the defense industry, ensuring high precision across every unit.

• Common aerospace components: structural brackets, housings, fittings, and interior hardware machined from aluminum and high-strength alloys

• Requirements include weight reduction, fatigue resistance, and tight tolerance stacking in assemblies

• 5-axis CNC machining is especially valuable for complex aerospace geometries that would require multiple setups on simpler machines

Automotive, Robotics, and Industrial Equipment

CNC machining is utilized in automotive for engine and transmission components that demand dimensional consistency at volume. CNC machining produces precise engine blocks for the automotive industry, along with fixtures, robotic end-effectors, sensor mounts, and precision gears.

• CNC turning and milling are critical for custom jigs and fixtures used within production lines themselves

• Examples: aluminum gearbox housings, steel shafts, and precision alignment blocks for industrial equipment

• Durability and maintainability in industrial environments make CNC-machined parts preferable to cast or fabricated alternatives for many applications

Electronics, Consumer Products, and Prototyping

CNC machining is used for high-speed drilling of circuit boards in electronics, as well as producing heatsinks, enclosures, connector housings, and structural frames for devices.

• Prototypes and short runs for consumer products benefit from the appearance and tactile quality that only metal cutting and finishing can deliver

• Combining CNC machining with laser cutting and sheet metal fabrication supports full enclosure and chassis solutions

• A stationary workpiece on a milling machine receives precise pocket and hole features that match PCB layouts and assembly requirements exactly

How Anebon Supports Your CNC Machining Projects

Anebon Metal Products Limited, founded in 2010 in Dongguan, China, specializes in precision CNC machining, die casting, and sheet metal fabrication for overseas OEM customers across North America, Europe, and Asia-Pacific.

• ISO 9001:2015 and ISO 14001:2015 certified

• Core services: rapid prototyping, low-to-high volume production, DFM consultation, wide materials range, and tight tolerances (as precise as ±0.002 mm)

• Anebon combines CNC machining with die casting, sheet metal fabrication, and surface finishing to deliver complete, production-ready components

• CNC machining serves as the hub of our manufacturing capabilities, supported by quality systems that give OEM buyers confidence in every shipment

Typical Engagement Flow: From RFQ to Production

Working with Anebon follows a clear, predictable process:

1. RFQ submission – Send your CAD files (STEP preferred), drawings, material specs, and target volumes

2. DFM feedback – Our engineering team reviews your design and suggests optimizations for cost, lead time, and quality

3. Quotation – Detailed pricing based on material, machining time, finishing, and inspection requirements

4. Sample production – Prototype or first-article parts delivered in 5–10 working days for most projects

5. Validation and approval – Parts inspected against your specifications with full documentation

6. Full production – Scale from pilot runs to large scale production with consistent quality and regular communication

Throughout this process, overseas clients receive regular updates, in-process photos, inspection reports, and logistics coordination.

Ready to get started? Send your CAD files to Anebon’s engineering team for a detailed CNC machining quotation and complimentary DFM review. Whether you need a handful of prototypes or thousands of production parts, precision machining backed by certified quality systems is what we deliver-part after part.
